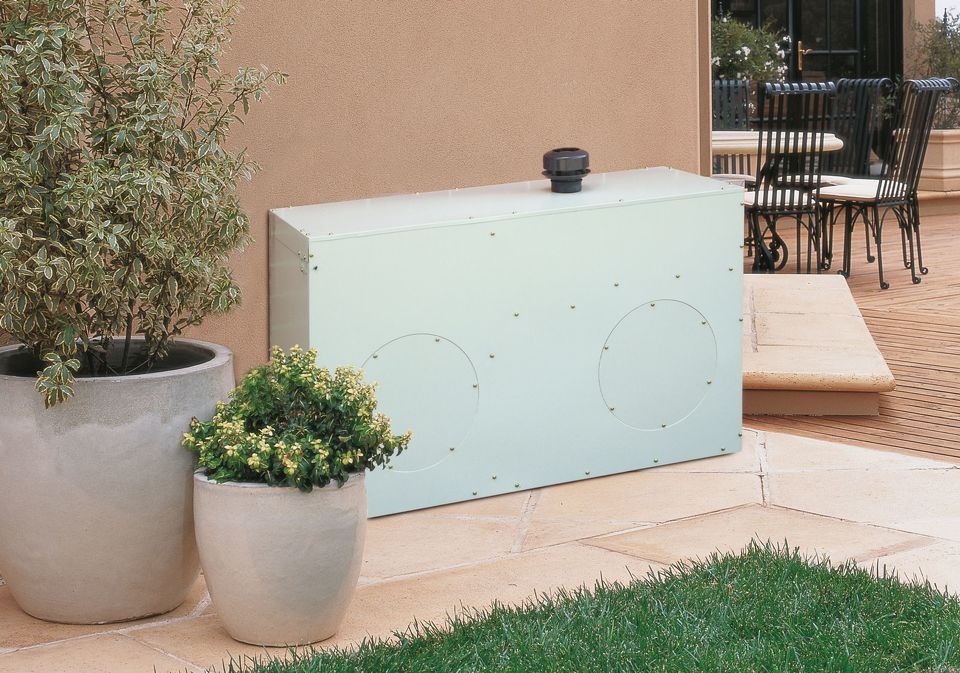

Bonaire MB5
Ducted Gas Heater
The advanced technology of gas valve modulation is able to match the load requirements of your home reducing its heating capacity as low as 10%*. This not only reduces gas consumption but also reduces electricity usage of the fan motor.
The MB5 series also offers the choice of Navigator Wall Mounted Controller or Navigator Radio Frequency (RF) Remote Controller. You can also operate your MB5 heater with the optional Bonaire My Climate® Wi-Fi® control.
Bonaire MB5 Features:
• 5 star energy efficiency rating
• Non condensing eliminating the need for a condensate drain
• Modulating gas valve automatically adjusts gas rate as the home approaches set temperature
• Modulating combustion fan for higher efficiency
• Auto adjusting variable speed room air fan further enhancing the benefit of modulation and energy savings
• Super quiet operation with fully insulated unit cabin
• Integrated four zone control standard, heat only the rooms you need when you need them**
• Option of an 8 zone system for total comfort and maximum efficiency**
• Compatible with Bonaire Optima Dual Cycle refrigerated air conditioning
• Universal internal/external unit
• Selected models available in ULPG
• 5 year parts and labour warranty with 10 year parts warranty on the burner.
• 7 year warranty option
| Bonaire MB5 Series 5 Star Rated Non Condensing Gas Heaters | MB5NC-15 | MB5NC-21 | MB5NC-21XA | MB5NC-30 | MB5NC-30XA | MB5NC-35 |
| Capacity | Internal only |
| Heat output kW/Hr (nominal) | 15 | 21 | 21 | 30 | 30 | 35 |
| Airflow @100pa | 570 | 660 | 920 | 920 | 1150 | 1150 |
| MegaJoules | 60 | 80 | 80 | 120 | 120 | 140 |
| Star Rating | 5.0 | 5.2 | 5.2 | 5.6 | 5.6 | 5.8 |
| Typical number of 150mm outlets | 5 to 9 | 7 to 11 | 7 to 14 | 8 to 15 | 8 to 20 | 8 to 20 |
| Dimensions | ||||||
| Length (mm) | 845 | 845 | 894 | 894 | 995 | 894 |
| Width (mm) | 350 | 350 | 476 | 476 | 525 | 539 |
| Height (mm) | 618 | 618 | 658 | 658 | 658 | 658 |
| Weight (kg | 52 | 54 | 64 | 70 | 80 | 81 |
| Duct Connections supply and return | 300 | 300 | 350 | 350 | Supply 400 return 350 | Supply 400 return 350 |
